高輝度LCDデジタルサイネージ(ショーウインドウ用途)
ショーウインドー内部にポール等で設置可能(写真はイメージ)
|
 |
 |

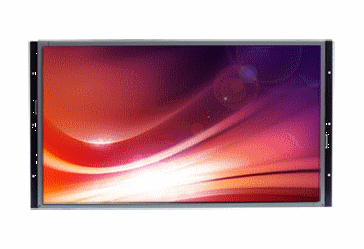

32インチ(16:9)1000cd/m2(オプション2500cd)軽量10kgフルHD1920×1080
MAXRGB(おいしく見える技術)採用LCD
|

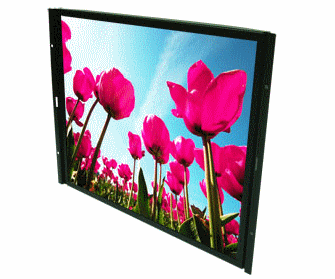

21.5インチ(16:9)1600cd/m2軽量5kgフルHD1920×1080
|
 |
 |
Model Number |
21.5SWLCD |
32SWLCD |
Description |
21.5" sunlight readable digital signage, LED Backlight FHD(1920x1080)
|
32" sunlight readable digital signage, LED Backlight FHD(1920x1080) |
Display Area |
476.64(H) x 268.11 (V) mm |
698.4 (H) x 392.8 (V) mm |
Brightness |
1600 cd/m2 |
1000 cd/m2 |
Resolution |
1920 x 1080 |
1920 x 1080 |
Aspect Ratio |
16 : 9 |
16 : 9 |
Contrast Ratio |
900:1 |
6300:1 |
Color Saturation |
84% |
94% MaxRGB |
Viewing Angle |
170°(H), 160°(V) |
178°(H), 178°(V) |

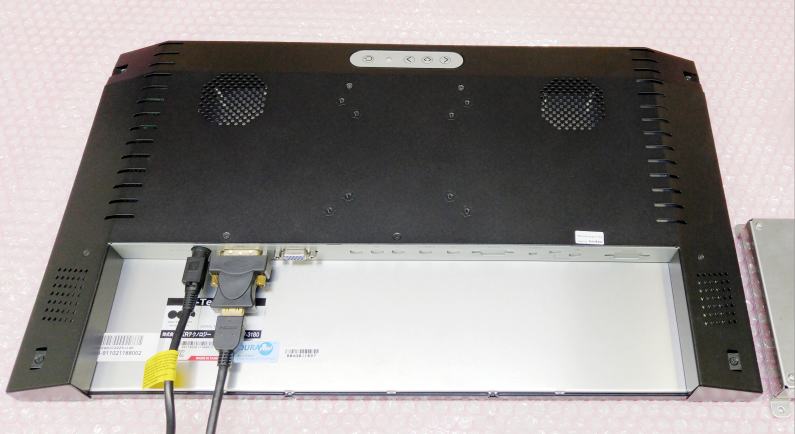

Video Interface |
VGA DVI-D |
VGA DVI -D DP |
Power Consumption |
41W |
71W |
Dimensions (mm) |
500(W)294.6(H)x35.5(D) |
735.4(W)429.7(H)x59.6(D) |
Weight |
5kg |
10kg |
Mounting |
VESA 75×75 100×100 |
VESA 100×100 200×200 |
Storage Temperature |
-20 °C ~ 60°C |
-20 °C ~ 60 °C |
|

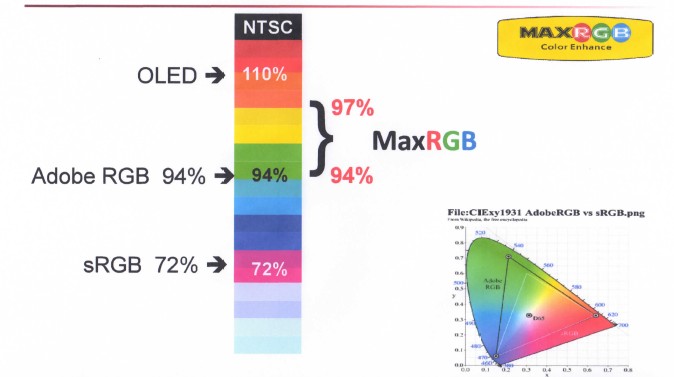

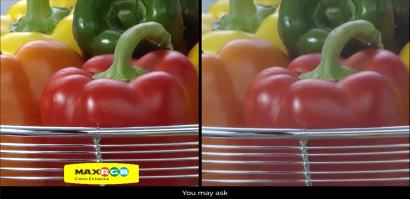

おいしくきれいにみえる表示技術
MaxRGB 94%
LEDバックライト光源(RGB)は青色
の成分が多いため青っぽくみえます。
RGB3原色のピークを平均化して
色再現性を高めたため
色鮮やかな表示が可能になりました
|
 |
 |
 |
ショーウインドー用には32インチより大きな43インチ55インチも用意しました(4K対応も可)
超高輝度2500cd 等の相談も可能です

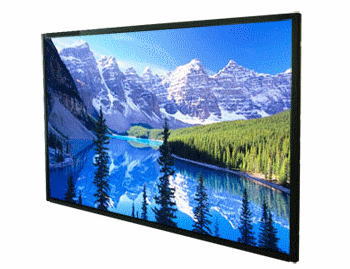

52インチデジタルサイネージパネル
超高輝度液晶モニター 2000カンデラ
FULL HD 1920×1080フルハイビジョン
スリムベゼルタイプ |
52inch
|
Model Number
|
52KLCD
|
Description
|
52" sunlight readable
digital signage, FHD(1920x1080)
|
Display Area
|
1152 (H) x 648 (V) mm
|
Brightness
|
2000 cd/m2
|
Resolution
|
1920 x 1080
|
Aspect Ratio
|
16 : 9
|
Contrast Ratio
|
2000:1
|
Pixel Pitch (mm)
|
0.6 x 0.6
|
Viewing Angle
|
176°(H), 176°(V)
|
Display Colors
|
107.3M
|
Response Time (Typical)
|
4 ms
|
Playback Function
|
Video, Music, Photo, RSS
|
Video Codec
|
MPEG-1,2,4,Divx 3.11/ Windows
media video9
|
Video Formats
|
Mpg/mpeg/asf/avi/vob/wmv/ts
|
Audio Formats
|
MP3 / WAV / AAC / WMA
|
Image Format
|
Bmp / Jpg / Jpeg / Png / Gif
|
Storage
|
SDHC card
|
Network Connection
|
Ethernet 10/100 Mbps
|
Wireless Network
|
802.11 b/g/n WiFi (optional)
|
I/O Interface
|
RS232, USB, IR remote
|
Speaker
|
2W x2
|
Power Consumption
|
TBD
|
Dimensions (mm)
|
TBD
|
Operation Temperature
|
0 °C ~ 50 °C
|
Storage Temperature
|
-20 °C ~ 70 °C
|
Certification
|
CE/FCC
|
|
|
|
|
|
 |
|
|
|
