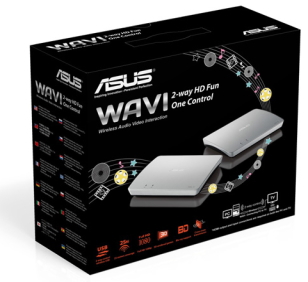

Wireless Technology

WHDI Technology

Antenna

4 x 5 MIMO

Operation Channel

5 GHz

Power Supply

Transmitter and Receiver:12V, 2A 24W adapters

Power Consumption

24W

Resolution support

TV:1080P, 1080i , 720p, 576p, 480p
3D Videos: 1080p@24HZ

Dimensions

241 x 171 x 29 mm

Accessories

AC adapter x2
HDMI cable x2

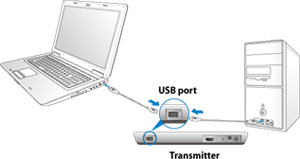

USB cable(for PC connection) x1

Supported Formats

Video : MPEG1, MPEG2, MPEG4, RM, RMVB, VC-1, H.264
Video File Extension : TRP, MP4, MOV, Xvid, AVI, ASF, WMV, MKV, RMVB 720p, RMVB 1080p, FLV, TS, MTS, M2TS, DAT, MPG, VOB, ISO, IFO, M1V, M2V, M4V
Audio : MP3, WAV, AAC, OGG, FLAC, AIFF, Dolby Digital AC3, Dolby Digital Plus, DTS 2.0 +Digital out, Tag ID3
Image : JPEG, BMP, PNG, GIF, TIFF
Subtitle : SRT, SUB, SMI, SSA, ASS, IDX, TXT

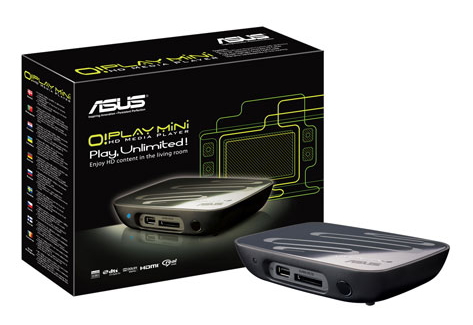

Inputs

1 x DC Power In
1 x USB Port(s)
1 x S/PDIF (Optical)
4 -in-1 Card Readers ( SD/ MS/ xD/ MMC)

Outputs

Composite Video
Composite Audio L/R
S/PDIF Out (Optical)
HDMI 1.3

Accessories

AC Adapter
Plug
Remote Control
Composite A/V Cable
Quick Start Guide
CD (User Manual)

File Systems

FAT16/32, NTFS, HFS/HFS+, EXT3

Features

AutoPlay, Right TxT

Internet Content & Service

N/A

Dimensions

151.85 x 106.7 x 29.03 mm (WxDxH)

Weight

175 g

Power

12 Vdc, 2 A

Power Consumption

10 W

Operation Temperature

5°C(41°F)~35°C(95°F)

Note

Container formats can contains different video, audio codecs- it cannot be guaranteed that all codecs (variations) are supported.
